The LED button switch is a composite button switch of the button switch with LED. The switch function has an LED indicator inside, which can accurately indicate the on/off state of the switch, and is very convenient for the user to find the switch position in the dark. Its opening and closing operations are all in the same position, and the rocker automatically returns to a flat state when the hand is released, which has a longer life.
Illuminated Push Button Switches R0195

•  Rating：2A 36VDC
•  Contact Resistance：50mΩ max（initial）
•  Insulation Resistance：1,000MΩ min 500VDC
•  Dielectric Strength：2,000V RMS 50~60HZ
•  Operating force：5.5N max
•  Electric Life：20,000 cycles
•  Operating Temperation：-20℃ ~+ 70℃
•  Switching Circuit：OFF~(ON)
•  IP class：IP65 protection
•  Torque：5~14NM max.applied to nut

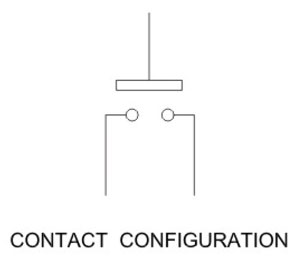

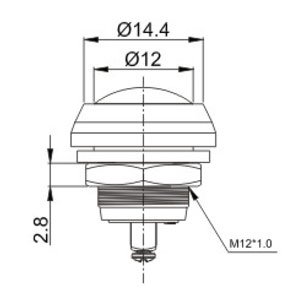

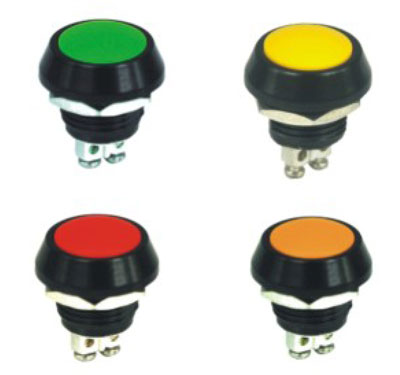

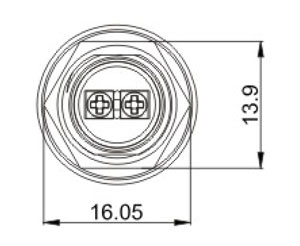

    Illuminated Push Button Switches R0195 Figure       Illuminated Push Button Switches R0195 Structure Diagram         Switch R0195 Structure Diagram   R0195 Structure Diagram



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating force Electric Life Operating Temperation Total Travel Download
R0195-MB-U 2A 36VDC 50mΩ max（initial） 1,000MΩ min 500VDC 2,000V RMS 50~60HZ 5.5N max 20,000 cycles -20℃ ~+ 70℃ / NULL
R0195-MB-G 2A 36VDC 50mΩ max（initial） 1,000MΩ min 500VDC 2,000V RMS 50~60HZ 5.5N max 20,000 cycles -20℃ ~+ 70℃ / NULL
R0195-PB-B-R 100mA 24VDC 50mΩ max（initial） 1GΩ min at 500VDC 1,000VAC RMS 2N~5N 500,000 cycles / 2.5mm NULL
R0195-PB-R 100mA 24VDC 50mΩ max（initial） 1GΩ min at 500VDC 1,000VAC RMS 2N~5N 500,000 cycles / 2.5mm NULL
R0195-PSB-B 100mA 50VDC 50mΩ max 1GΩ min at 500VDC 1,000VAC RMS 2N~5N 500,000 cycles / 1.5mm NULL
R0195-PZB-B 100mA 50VDC 50mΩ max（initial） 1GΩ min at 500VDC 1,000VAC RMS 2N~5N 500,000 cycles / 1.5mm NULL
R0195-A-PB-R-R 100mA 24VDC 50mΩ max（initial） 1GΩ min at 500VDC 1,000VAC RMS 2N~5N 200,000 cycles / 2.5mm NULL
R0195-A-PB-Y 100mA 24VDC 50mΩ max（initial） 1GΩ min at 500VDC 1,000VAC RMS 2N~5N 200,000 cycles / 2.5mm NULL
