The LED button switch is a composite button switch of the button switch with LED. The switch function has an LED indicator inside, which can accurately indicate the on/off state of the switch, and is very convenient for the user to find the switch position in the dark. Its opening and closing operations are all in the same position, and the rocker automatically returns to a flat state when the hand is released, which has a longer life.
Ultra Low Profile Tactile Switches R2995A

•  Pole-Position：1P2T,Right Angle Push on-on momentary
                            Type,with or w/o LED are Available
•  Rating：Power Min./Max.:0.02VA/1.0VA
                 Current Min./Max.:0.1mA~100mA
                 Voltage Min./Max.:DC 20mV~DC 32V
•  Contact Resistance：250mΩmax，1.5VDC;100mA,
                                      by Method of Voltage DROP
•  Insulation Resistance：100MΩ min.500VDC
•  Dielectric Strength：Breakdown is not Allowable;
                                    250 VAC for 1 Minute
•  Operating Force：400±125gf
•  Operating Life：50,000 cycles
•  Operating Temperature Range：-20℃ ~70℃
•  Total Travel：0.20mm MAX

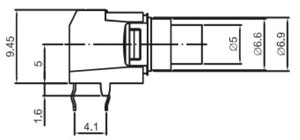

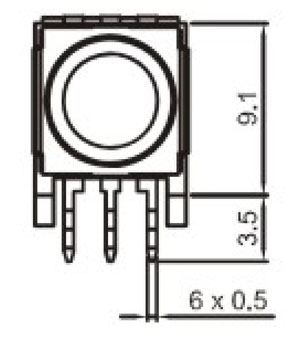

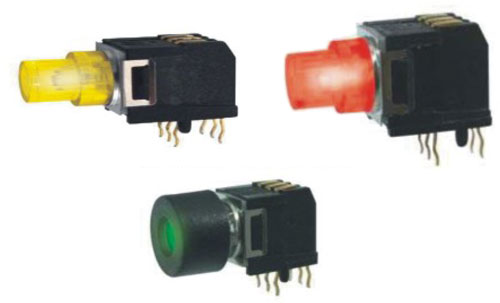

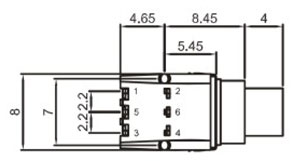

  Ultra Low Profile Tactile Switches R2995A Figure     Ultra Low Profile Tactile Switches R2995A Structure Diagram      Switch R2995A Structure Diagram     R2995A Structure Diagram



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Operating Life Operating Temperature Range Total Travel Download
R2995A-NWY Power Min./Max.:0.02VA/1.0VA Current Min./Max.:0.1mA~100mA Voltage Min./Max.:DC 20mV~DC 32V 250mΩmax，1.5VDC;100mA,by Method of Voltage DROP 100MΩ min.500VDC Breakdown is not Allowable;250 VAC for 1 Minute 400±125gf 50,000 cycles -20℃ ~70℃ 0.20mm MAX NULL
R2995A-NWR Power Min./Max.:0.02VA/1.0VA Current Min./Max.:0.1mA~100mA Voltage Min./Max.:DC 20mV~DC 32V 250mΩmax，1.5VDC;100mA,by Method of Voltage DROP 100MΩ min.500VDC Breakdown is not Allowable;250 VAC for 1 Minute 400±125gf 50,000 cycles -20℃ ~70℃ 0.20mm MAX NULL
R2995A-NWG-CAP-K Power Min./Max.:0.02VA/1.0VA Current Min./Max.:0.1mA~100mA Voltage Min./Max.:DC 20mV~DC 32V 250mΩmax，1.5VDC;100mA,by Method of Voltage DROP 100MΩ min.500VDC Breakdown is not Allowable;250 VAC for 1 Minute 400±125gf 50,000 cycles -20℃ ~70℃ 0.20mm MAX NULL
